● 0~1000V DC Measurement; MID Certified
● 8 digitals LCD display; SOE record; Class B
● RS485 communication interface; Supports Modbus-RTU protocol
● Keypads HMI for Programming
● Use matching with shunt (Integrated, left-right structure)
● DC9~36V power supply
● Set the ratio, alarm, and communication through the meter panel keys according to different requirements
● Event recording of switch (Modbus protocol), programming and event setting records, instantaneous and timing freeze function of data, maximum and minimum value recording function of voltage and current power
General

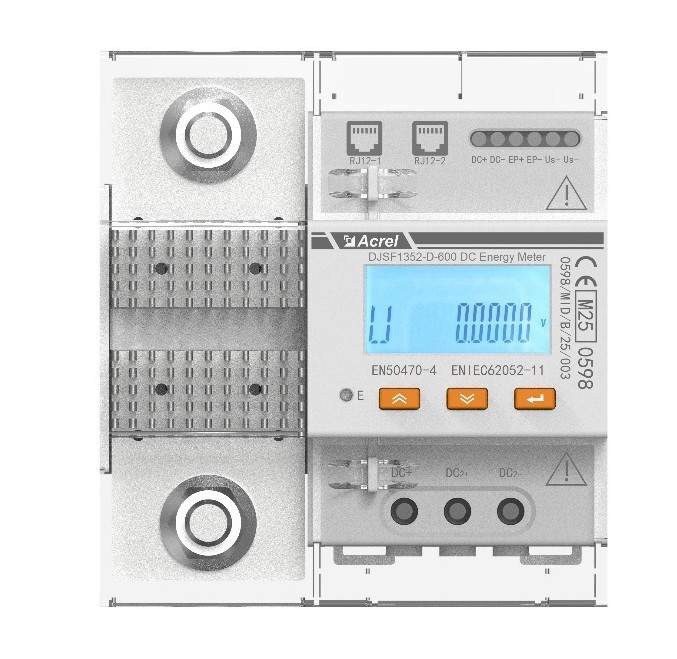

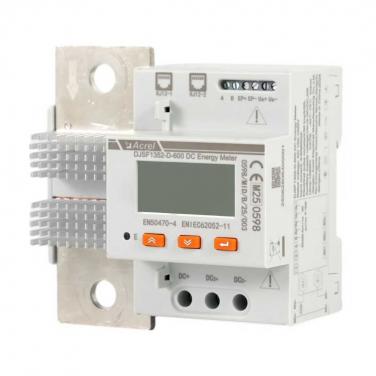

DJSF1352-D-600 MID certified rail-mounted DC power meter, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system. The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.
The meter have infrared communication interface and RS485 communication interface, and supports Modbus-RTU protocol and DLT645-97(07) protocol at the same time. The meter have relay alarm output and digital input function. It can set the ratio, alarm and communication through the meter panel keys according to different requirements. The meter have event recording of switch (Modbus protocol), programming and event setting records (645 protocol), instantaneous and timing freeze function of data (645 protocol), maximum and minimum value recording function of voltage and current power.
Specification
|
Model
|
Function
|
||
|
DJSF1352-D-360
|
DC Energy Meter (Maximum current 360A)
|
||
| DJSF1352-D-600 | DC Energy Meter (Maximum current 600A) | ||
| DJSF1352-L | LCD Display Module (For DJSF1352-D-600 extended display) | ||
Terminals and Wiring

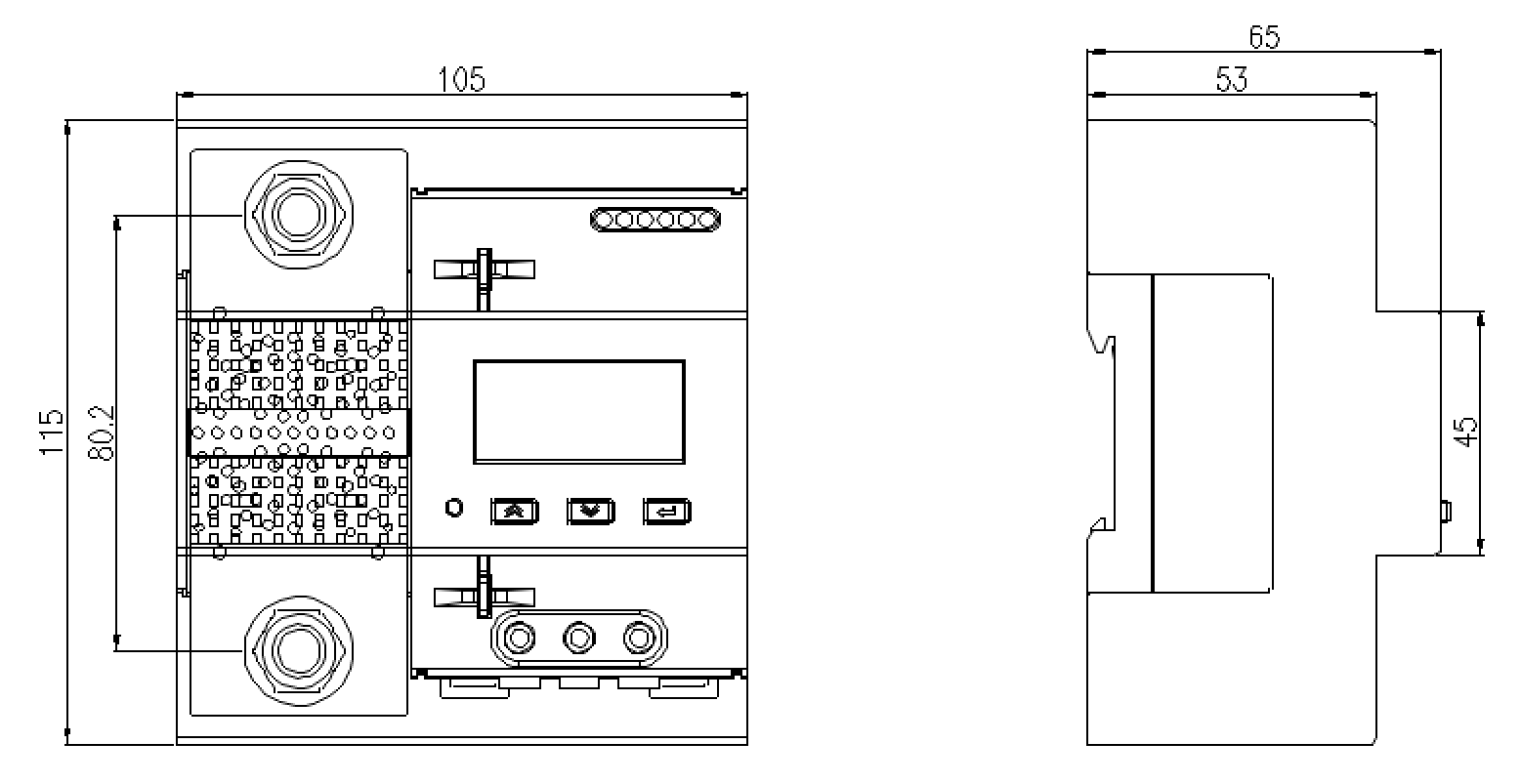

Dimension

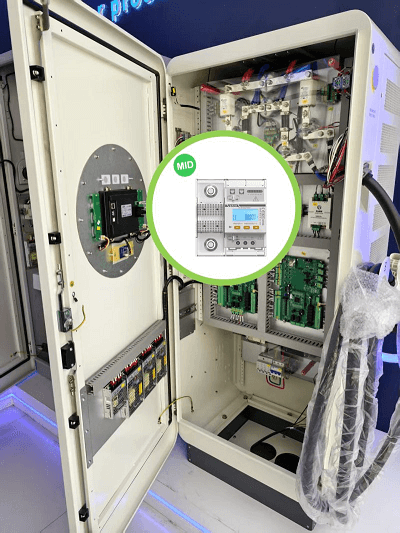

Photo on Site
|
Function |
Display |
8-bit segment LCD screen (LCD) |
|
Communication Interface |
RS485, infrared |
|
|
Communication protocol |
Modbus-RTU |
|
|
DL/T645-2007, DLT698 |
||
|
Pulse output |
A second pulse output, a energy pulse output |
|
|
See the SYS->PLUS display in the meter menu settings. For example: the meter displays 100, which is 100imp/kWH |
||
|
Power Supply
|
Voltage range |
DC9~36V |
|
Power consumption |
≤ 3W |
|
|
Power frequency withstand voltage |
Power supply // Voltage input // Current input // Relay output and switch input // Communication interface / / Pulse output 3kV/1min Power supply // Relay output // Voltage input // Current input 3kV/1min Pulse output // Communication interface // Switch input 2kV/1min |
|
|
Insulation resistance |
≥ 40M Ω |
|
|
Average barrier-free working hours |
≥50000h |
|
