● Voltage input range: DC 0-100V, DC 0-1500V
● Current input: Shunt: 0-75mV, Hall sensor: 0-5V, 0-200mA
● Accuracy level: 0.5 class
● Display: 8-bit segment LCD screen (LCD)
● Communication interface: RS485 (two options)
● Communication protocol: Modbus RTU, DL/T 645-2007, DLT698
● Working power supply: AC/DC 85–265 V or DC 12–48 V
● 6P size
General

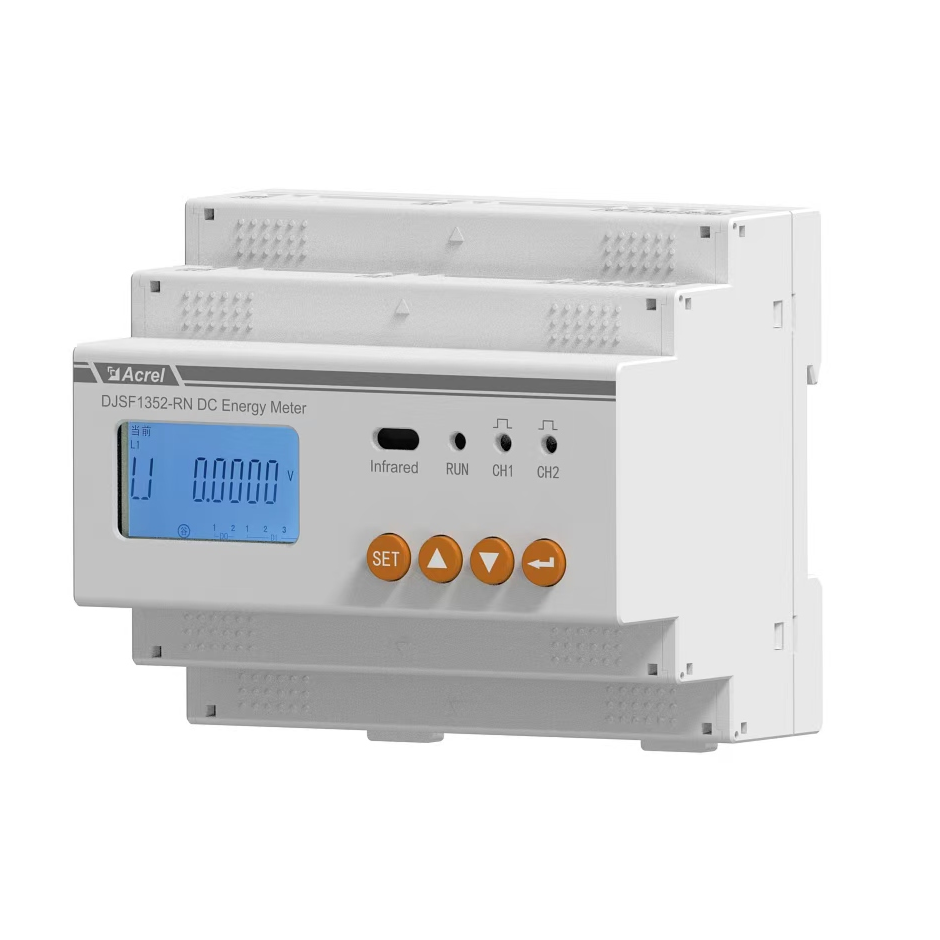

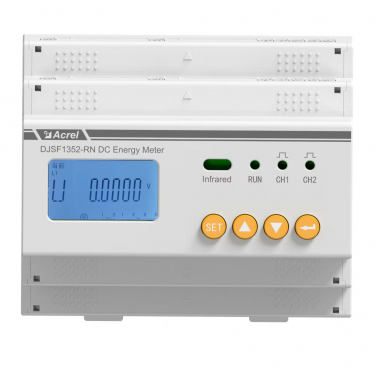

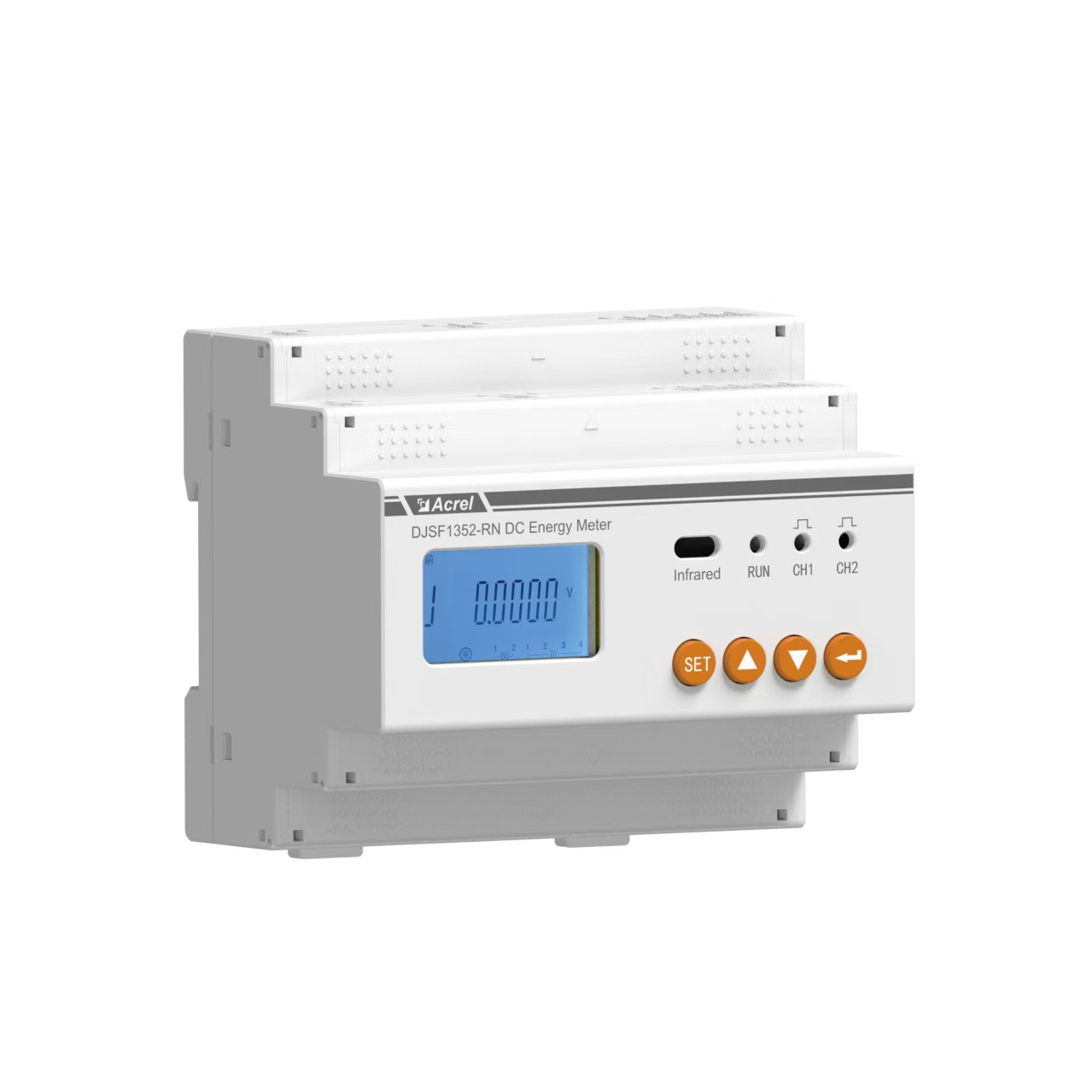

DJSF1352-RN Din-rail DC energy meter with dual DC input, mainly designed for telecom base stations, DC charging pile, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and positive and negative energy in the DC system. The test results can not only be used for local display, but also can be connected with industrial control equipment and computers to form a measurement and control system.

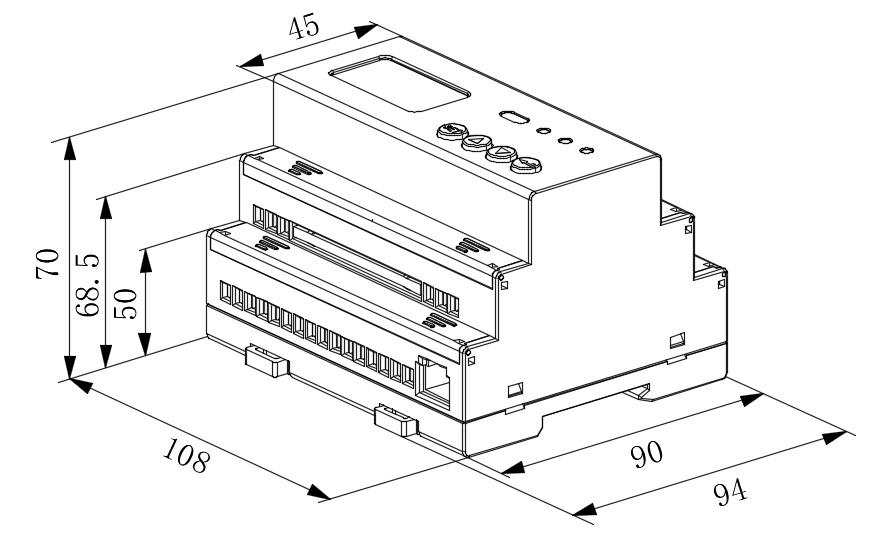

Dimension
Terminals
Wiring
|
Technical parameters |
Index |
||
|
Input |
Nominal value |
Voltage input |
Current input |
|
DC 0-100V、DC 0-1500V See the physical wiring diagram |
Shunt: 0-75mV |
||
|
Overload |
1.2 times can sustain normal operation, 2 times can sustain 1 second |
||
|
Power consumption |
Voltage: ≤0.2VA, current ≤0.1VA |
||
|
Accuracy class |
Class 0.5 |
||
|
Function |
Display |
8-bit segment LCD screen (LCD) |
|
|
Communication Interface |
RS485 (two options) |
||
|
Communication protocol |
Modbus-RTU, DL/T 645-2007, DLT698 |
||
|
Switch |
Switch output (DO) |
2 relay outputs, 2A/30VDC or 2A/250VAC |
|
|
Switch input (DI) |
2 dry contact inputs |
||
|
Analog |
Analog output (AO) |
4-20mA output (0.5 level) |
|
|
Pulse output |
Two channels power pulse output (the second power pulse can be switched to second pulse) |
||
|
See the display in SYS->PULS in the meter menu setting, for example: display 100, which means 100imp/ kWH |
|||
|
Working |
Voltage |
AC/DC 85-265V or DC 12V-48V |
|
|
Power consumption |
≤10W |
||
|
Power frequency
withstand voltage
|
Power supply//signal input//RS485 communication 4kV/1min;
Except for power supply, signal input and RS485 communication, other unconnected circuits are 2kV/1min
|
||
|
Insulation resistance
|
≥100MΩ
|
||
|
Average barrier-free
working time
|
≥50000h
|
||
|
Environment
|
Temperature
|
Working temperature: -25℃～+65℃
Storage temperature: -40℃～+80℃
|
|
|
Humidity
|
≤95%RH, no condensation, no corrosive gas
|
||
|
Altitude
|
≤3000m
|
||
