● Measurement: kWh, kVarh, Power, Current, Voltage and etc.
● Current Rating: DC75mV, DC0-5V, DC0-200mA
● Voltage Rating: DC 0-1000V, DC0-100V
● Communication: RS485 (MODBUS-RTU)
● LCD Display; 35mm DIN Rail Installation
● Power Supply:85~265V AC/DC; 12V-48V(±10%) DC
● Application: DC Battery; Charging Pile; Solar PV and etc.
General

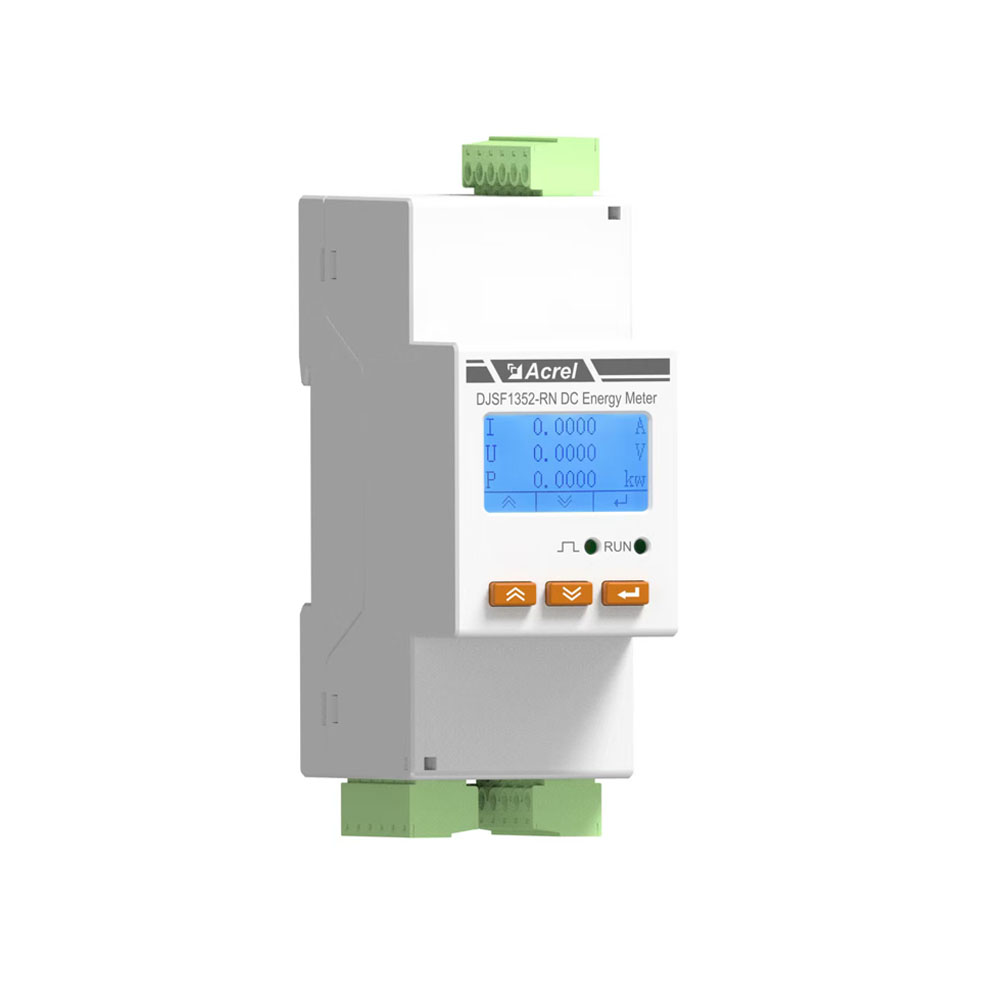

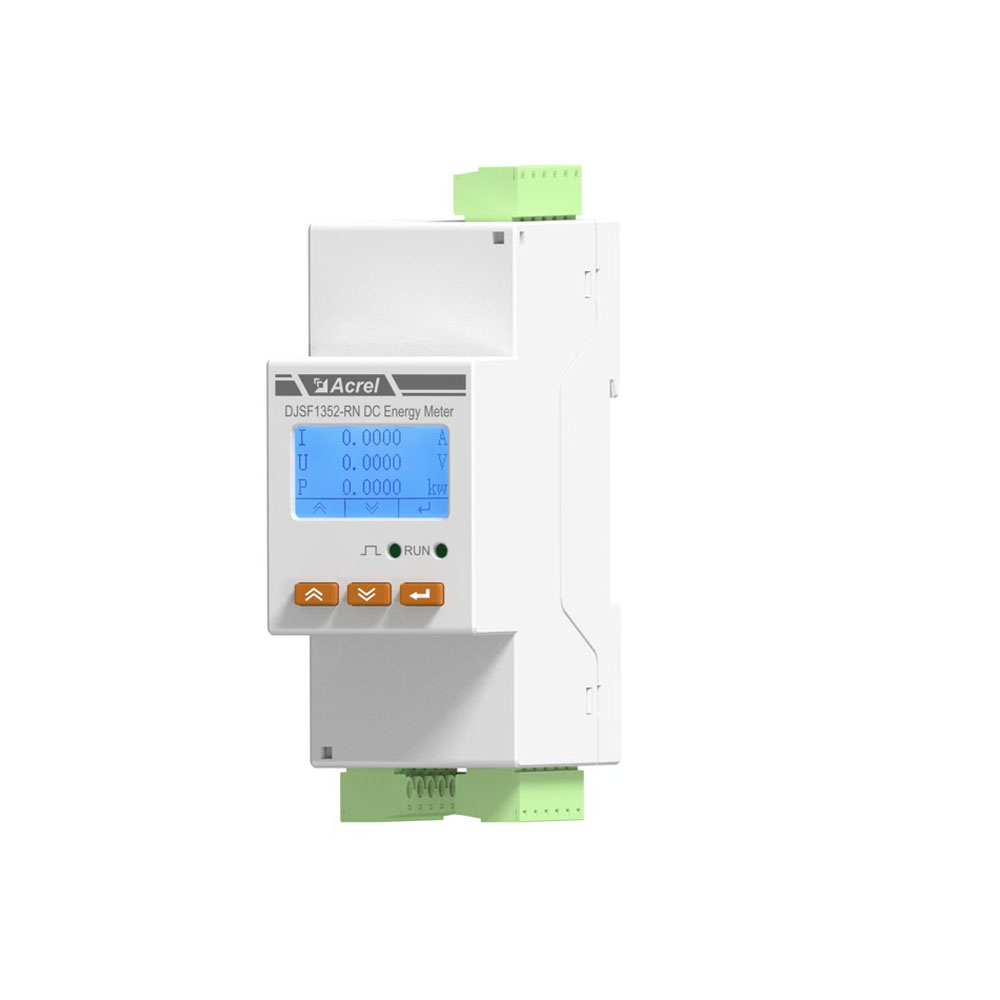

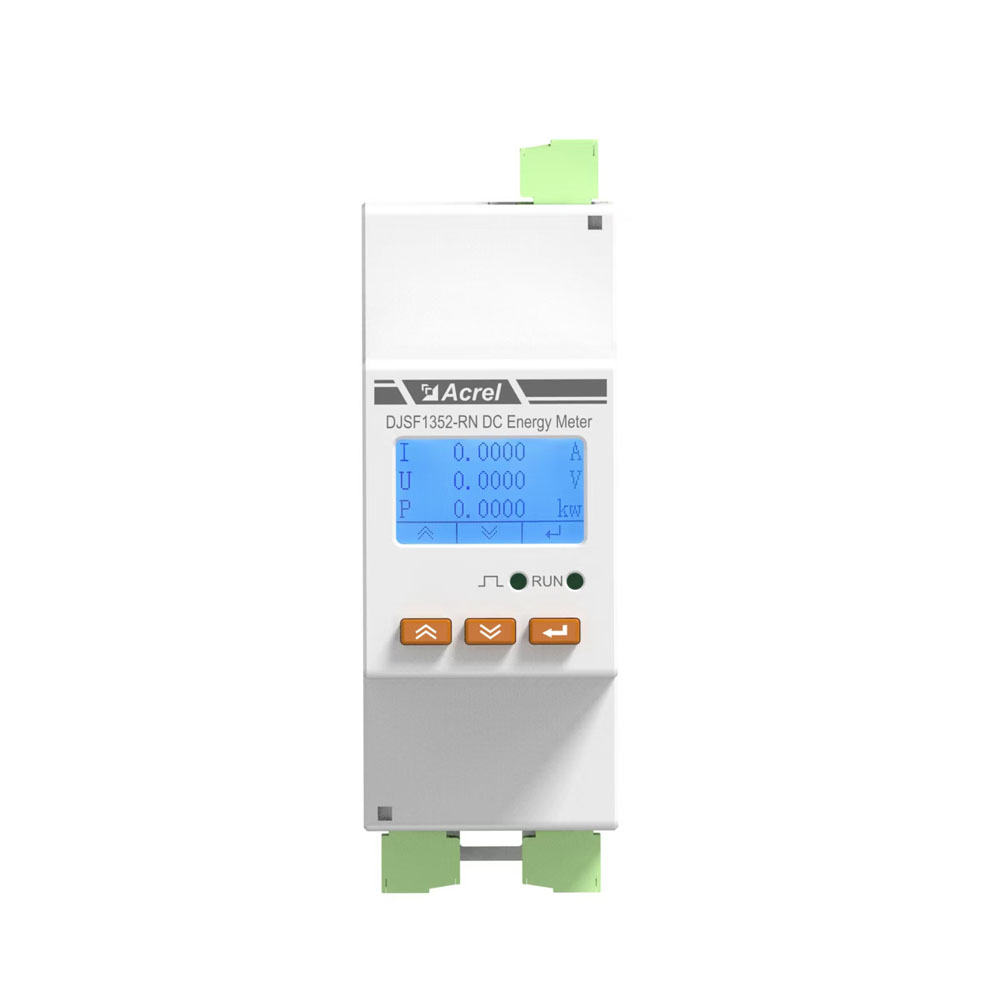

DJSF1352-RN-2 rail-mounted DC energy meter is designed mainly for DC charging piles, telecommunication base stations, solar photovoltaic and other application occasions. This series of instruments can measure voltage, current, power and positive and negative energy in the DC system. The test results can be used for local display and can also be connected with industrial control equipment and computers to form a measurement and control system.

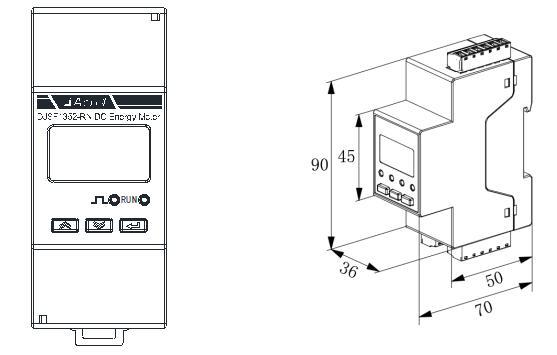

Dimension

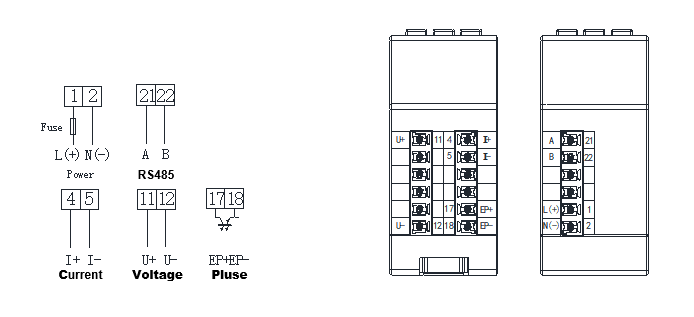

Terminals
Wiring
Shunt input
hall sensor input
|
Technical parameters |
Indicators |
||
|
Input |
Nominal value |
Voltage input range |
Current input |
|
DC 0-1000V, DC0-100V |
Shunt: 0-75mV; |
||
|
See the physical wiring diagram |
Hall sensor: 0-20mA、4-20mA、0-5V, 0-10V、0-200mA |
||
|
Overload |
1.2 times rated (continuous); 2 times rated/1 second; |
||
|
Power consumption |
Voltage: ≤0.2VA, current ≤0.1VA |
||
|
Accuracy class |
Class 0.5 |
||
|
Function |
Display |
8-bit segment LCD screen (LCD) |
|
|
Communication Interface |
RS485, infrared |
||
|
Communication protocol |
Modbus-RTU, DL/T 645-2007, DLT698 |
||
|
Pulse output |
One channel power pulse output |
||
|
See the SYS->PLUS display in the meter menu setting |
|||
|
For example: The meter displays 100, which is 100imp/kWH |
|||
|
Power Supply |
Voltage range |
AC/DC 85-265V or DC12V-48V (Auxiliary power supply code P1) |
|
|
Power consumption |
≤ 6W |
||
|
Power frequency withstand voltage |
Power supply//signal input//RS485 communication 4kV/1min; Except for power supply, signal input and RS485 communication, other unconnected circuits 2kV/1min |
||
|
Insulation resistance |
≥ 40M Ω |
||
|
Average barrier-free working hours |
≥50000h |
||
|
Environment |
Temperature |
Normal operating temperature: -25 °C ~ +65 °C; |
|
|
Limit working temperature: -40 °C ~ +70 °C; |
|||
|
Storage temperature: -40℃～+80℃; |
|||
|
Humidity |
≤93%RH, no condensation, no corrosive gas |
||
|
Altitude |
≤2500m |
||
